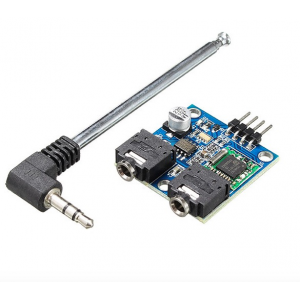

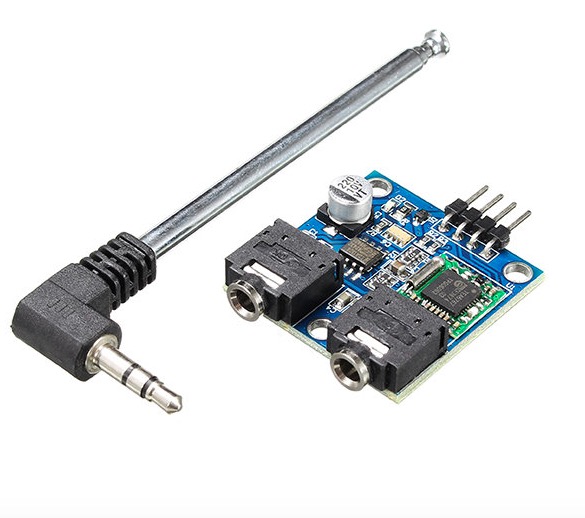

HS0499 TEA5767 FM Stereo Radio Module 76-108MHZ
Feature:
Frequency range from 76-108MHZ automatic digital tuning.
High sensitivity, high stability, low noise, radio module.
A low-power electro-tuning FM stereo radio circuit, which integrates the IF frequency selection and demodulation network, can be completely free of tune.
High sensitivity (Using low noise RF input amplifier)
High-gain automatic gain control (AGC) circuit
LC tuned oscillator fixed chip with low cost
Specification:
Board size: 31 x 30 mm
With a power reverse-protection diode
Board comes with power output filter inductor
Multiple capacitor combination filter
Blue power indicator
You can directly pull and plug the antenna port
I2C bus communication
FM radio TEA5767 dedicated chip module
Onboard headphone amplifier chip TDA1308 as audio amplification
Onboard 3.5mm audio interface, can be directly connected headset amplifier
If connects with singlechip, only need to connect the power ground and two I2C communication lines
Package includes:
1 x TEA5767 Radio Module
