| Brand: | Haitronic |
| Product Code: | HS0929 |
| Availability: | 9999999 |

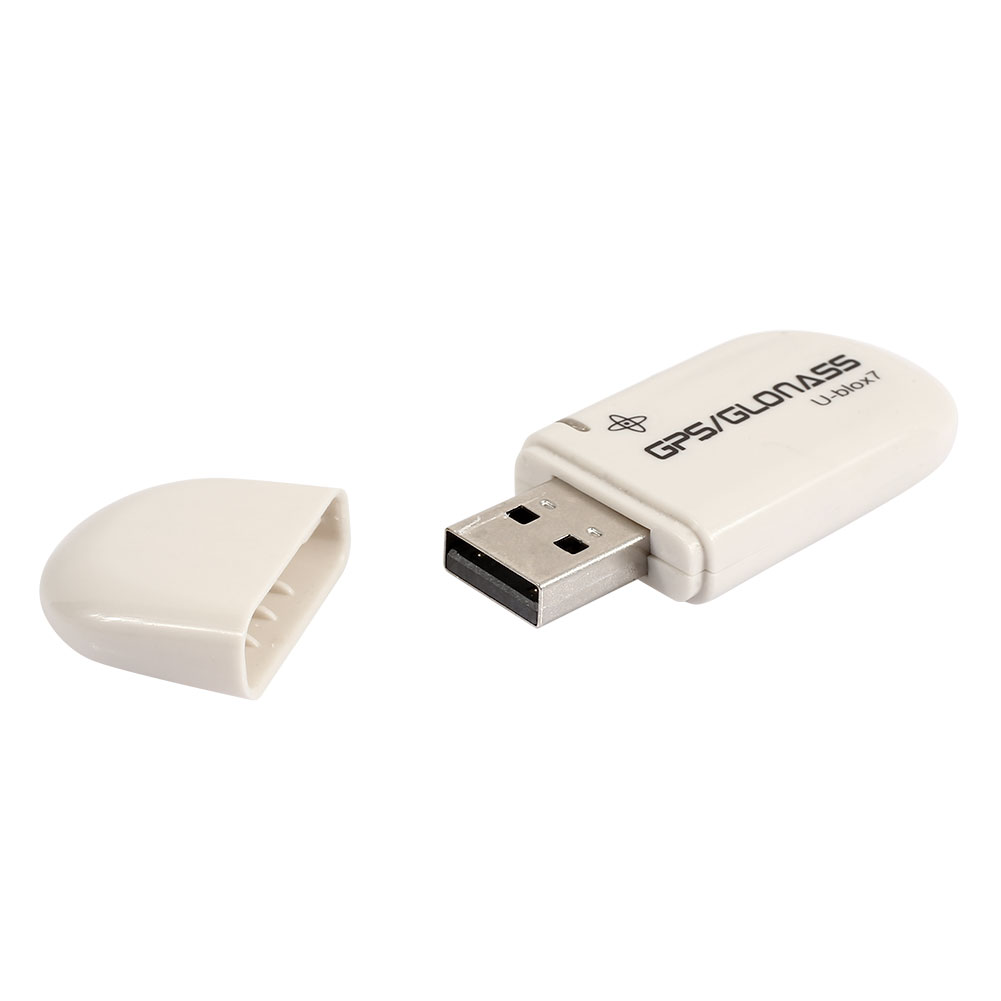

HS0929 VK-172 GMOUSE USB GPS Receiver Glonass Support Windows 10/8/7/Vista/XP/CE
Specification:
color: White
Material: ABS
2D plane: 5m [average]
2D plane: 3.5m [average], has DGPS auxiliary.
Drift: <0.02m / s
Timing Accuracy: 1us
Reference coordinate system: WGS-84
Maximum altitude: 18,000 m
Maximum speed: 500m / s
Acceleration: <4g
Tracking sensitivity:-162dBm
Acquisition sensitivity:-160dBm
Cold Start Time: 29s [average]
Warm start time: 28s [average]
Hot start time: 1s [average]
Recapture Time: 0.1s [average]
Operating temperature:
-30 ℃ to +80 ℃
upported operating systems: Windows 10 8/7/Vista/XP
Support Google Earth.
Support DGPS [WAAS, EGNOS and MSAS]
C / A code, 1.023.0MHz stream.
Tracking Channels: 56
Receive Band: L1 [1575.42MHz]
Tracking Channels: 56
Product Size: 6 * 2 * 1cm
G-MOUSE satellite receiver is a complete satellite positioning receiver.
VK-172 automatically adapt the baud rate, the baud rate has any data output
Built-in satellite receiving antenna, and the use of satellite receiver core,
with a full range of functions, to meet the stringent requirements of industrial-level positioning and personal needs.
Application range from car navigation, car alarm, bus stop, car DVR, car video surveillance, car DVD navigation, DVR, car audio, car monitoring, vehicle terminal, tracking, security system, personal positioning, various surveys to agricultural purposes and many more.
Packing list:
1 x VK-172 module
