| Brand: | Haitronic |
| Product Code: | HS0228 |
| Availability: | 999999 |

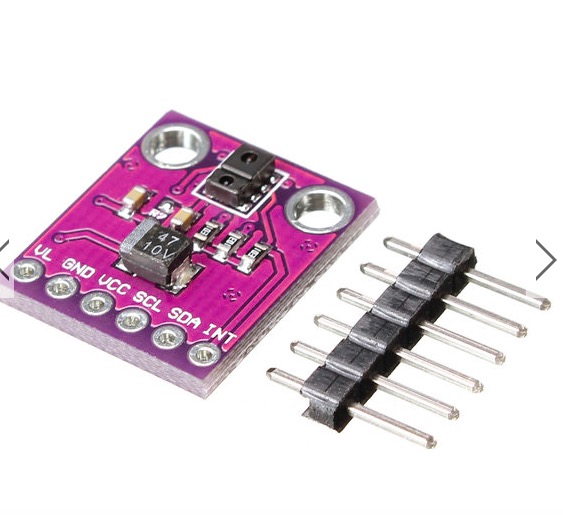

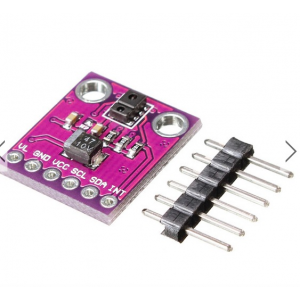

HS0228 CJMCU-9930 APDS-9930 Digital Proximity And Ambient Light Sensor
Features:
• Optical modules integrated with ALS, infrared LEDs and proximity detectors
• Ambient Light Sensing (ALS)
- Approximate human visual response
- Programmable interrupt capability with upper and lower thresholds
- Up to 16-bit resolution
- High sensitivity operation behind dark glass
- 0.01lux low lumen performance
• Proximity detection
- Fully calibrated to 100 mm detection
- Integrated infrared LED and synchronous LED driver
- Eliminates factory calibration of the proximity sensor
• Programmable wait timer
- Wait state power consumption - 90μA typical
- Programmable range from 2.7 ms to more than 8 seconds
• I2C interface compatible
- Up to 400kHz (I2C fast mode)
- Dedicated interrupt pin
• Sleep Mode Power - 2.2μA typical
• Small package 3.94 (L) x 2.36 (W) x 1.35 (H) mm
Applications:
• Adjustable light mobile phone backlight
• Notebook / display security
• ASutomatically enabled hands-free mode
• Automatic menu pop up
• Digital camera eye sensor
Package included:
1 x APDS-9930 Digital Proximity And Ambient Light Sensor
