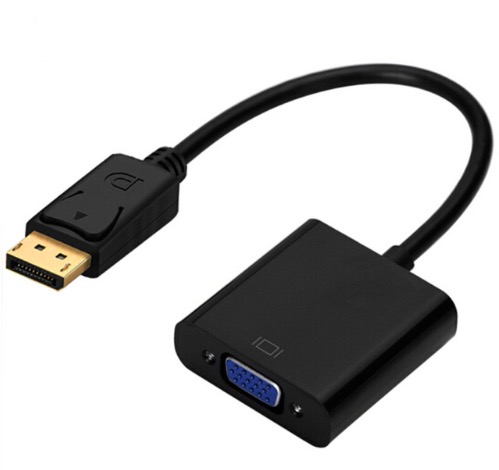

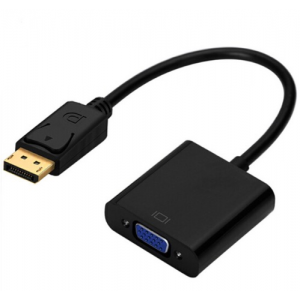

HS0599 DisplayPort Male to VGA Female Cable Converter

HS0599 DisplayPort Male to VGA Female Cable Converter

Features:

·       Support resolution up to 1080p, 1920 x 1200, reduce the transmission of video resolution signal blank situation appears;

·       The source reads the EDID of the display directly;

·       Decentralized spectra reduce electromagnetic interference;

·       Support the receiver to automatically detect;

·       From the DisplayPort information source to receive power and other devices (3.3V);

·       Low voltage operation - working mode 1.4W; standby mode 100mW;

·       Using scattered spectrum anti - electromagnetic interference;



Specifications:

·       Video input signal: 5Volts p-p (TTL)

·       The maximum signal connection range is 1920x1200, 1080p

·       Video Amplifier Bandwidth: 154MHz / 144MHZ

·       Input and output interface:

·       Input: DisplayPort Male 20pin;

·       Output: VGA 15PIN female; RGB analog video

·       Colour: Black

·       Length: 20CM

Packing included:

·       1X DisplayPort Male to VGA Female adapter
