| Brand: | Haitronic |
| Product Code: | HR0565 |
| Availability: | 99601 |
To all sorts of color TV set memory (24 series IC), LCD (24.25 series IC) desktop motherboard (25 series IC) notebook (25 series IC) router (25 series IC) card (25 series IC) DVD (25 series IC), set-top boxes (25 series IC) software to unlock, backup, erasing, burning, check.

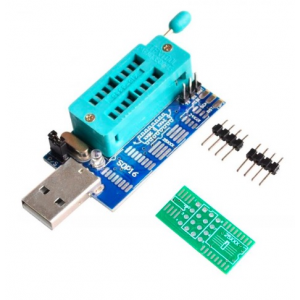

24 and 25 series FLASH programmer
Summary:
24 and 25 series of FLASH has been very popular at present. Burn for these chips, currently only professional programmer can support, but the price of a professional programmer is very expensive, not general maintenance users can have; So we can create a support block 24 series of EEPROM and ST, WINB IND, AMIC, MXIC, SST, SPANSION, EON, PMC and other manufacturers of 8 feet 25 series chip programmer.
The programmer features:
1, by special USB chip CH341A production. USB1.1 communication. Burning speed than ordinary ATMEGA8 25
Series of programming 2-3 times faster. Erase the burning check speed about 2-3 mbit per minute. Very suitable for amateur burning
24 and 25 series of FLASH.
2, support WIN98, WINME, WIN2K, WINXP, VISTA, Windows 7 - a 32-bit operating system.
3, USES the USB port power supply
2: put the programmer computer USB port, open the "CH341A programmer software" the burning software. Choose good chip capacity, can burn write and erase the chips.
Download online (USB serial port, P/S end cap off)
Put the programmer computer USB port, programmer received nine RX, TX foot on the TX and RX received notice from nine GND received nine GND.
Choose corresponding COM, open the corresponding download software platform, online upgrade your nine machine. (software upgrade not programmer accompanying the software)
Driver installation
1: install parallel port driver (burning 24 and 25 series used FLASH drive)
Will jump on the PCB P/S end cap closed
Detailed installation steps "CH341A parallel port driver and instructions in the installation instructions - TB" folder
2: install serial port driver (such as USB serial port, in nine support serial model online download online download)
Will jump on the PCB P/S end cap is removed
Detailed installation steps "CH341A serial port driver and instructions in the installation instructions - TB" folder
24 series chip burning (P/S jump end cap closed)
: put the programmer computer USB port, open the USB port "24 to 25 series of burning of the programmer"
Software. Choose good chip capacity, can burn. 25 series chip burning (P/S jump end cap closed)
6. Read 25 x80 series 8 m chip only 9 seconds. 25 x80 erasures - blank check - programming - a charm to complete the four steps only 1 minute, 6 seconds
Marked on our software on the chip and the programmer chip position is one-to-one, not like others boast is licensed, the software on the chip position and marked on the programmer chip placing position not corresponding, genuine and not the original you can see at a glance.
