| Brand: | Haitronic |
| Product Code: | HS1750 |
| Availability: | 999950 |
HS1750 CLRC663 RC663 Development board Full protocol NFC reading card module IC card reading and writing induction RFID radio frequency
The program code data: https://pan.baidu.com/s/1qks5-vYysM-KB-YDLNS9Og extraction code: cyxe

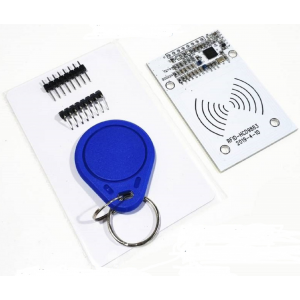

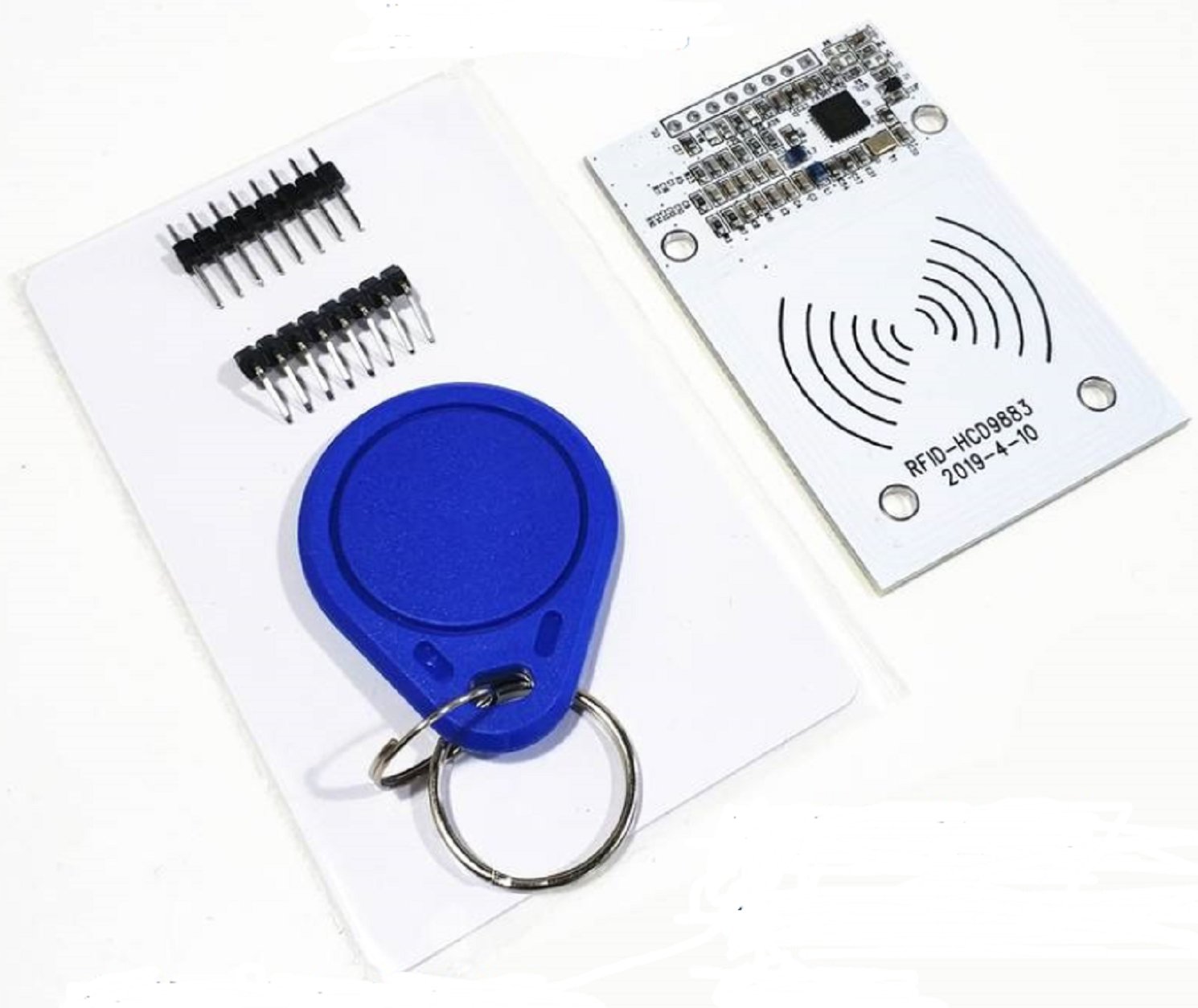

Shipping list
CLRC663 all-protocol NFC module: 1 block
S50 white card, 1
S50 key ring, one
8P pins, 2
CLRC663 chip research and development production based on NXP used to verify the basic NFC function of the development board! CLRC663 development board is powerful, supports a variety of card types, and supports all protocols.
Module parameters:
Model: CLRC663 all-protocol NFC card reading module (13.56mhz all-protocol)
Communication protocol: SPI
Product size: 60MM*39MM
Supply voltage: 3.3-5v
Card reading distance: 0-7cm
Working current: 50mA idle current: < 10mA
Support card protocol: TypeA/B 15693 Felica, second generation card, unionpay card, compatible with all NXP smart card products
