| Brand: | Haitronic |
| Product Code: | HS3753 |
| Availability: | 999999 |
HS3753 NVEM 200KHZ Ethernet Motion card MACH3 CNC Controller 3/4/5/6Axis
product content：
Control card*1
One meter cable *1
CD*1
Performance parameters:
Support Ethernet;
S 12 ports photoelectric isolated input interface for ordinary digital data；
S 10 ports photoelectric isolated output interface for ordinary digital data；
S 1 port 0-10V spindle speed analog output interface(can change to PWM output)；
S can support 3-6 axis stepper systems,200KHz pulse output for every axis；
S ARM motion control chip；
S main device is 12V-32VDC power supply input,current should higher than 0.5A；
S Compatible with MPG input,support the digital display MPG from our company。
Appearance and size:

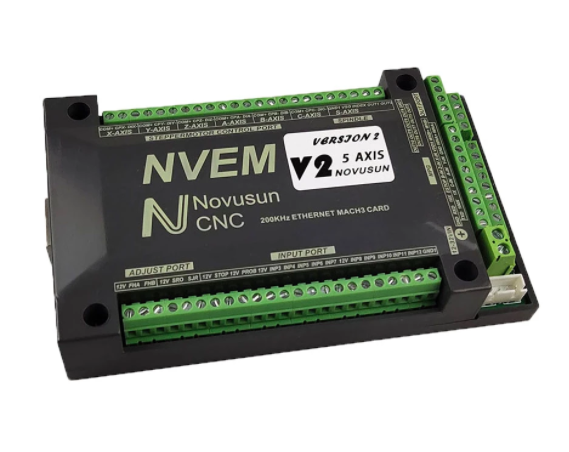

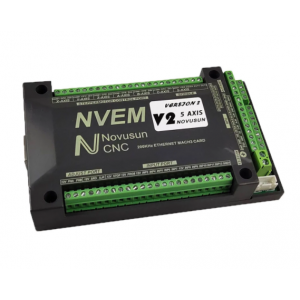

NVEMV2.1 motion controller is with the sealed shell structure,there are 4pcs setting holes
at the bottom.We can fix 4pcs 4mm diameter holes at the cabinet,and install the controller into
the cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:
The products overall size is 163.1mm*80.8mm*27.8mm；
The bottom install size is 101.4mm*39.5mm。
