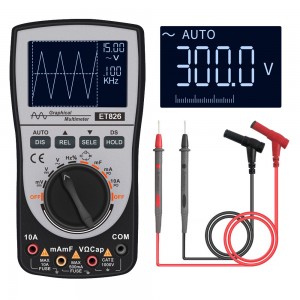

HS4341 2-in-1 Intelligent Digital Oscilloscope ET826 Multimeter DC/AC Current Voltage Resistance Frequency Diode Tester 4000 Counts
Features:
Digital multimeter with 200K high-speed A/D sampling, 4000 counts auto-range, one-button switch of graphical waveform display during measurement.
High reliability with panel calibration technology and memory calibration, sparing the need for adjustment with potentiometer.
Storing 100 sets of data and 10 waveforms independently.
Capable of holding waveform and data during measurement, easy to view and analyze.
Displaying historical data and real-time measurement on the same screen with particular record reading mode for easy comparison.
Featuring DC/AC voltage/current, resistance, capacitance/mF (large capacitance), frequency/duty cycle, diode/continuity test.
AC voltage bandwidth up to 20KHz.
Innovative design for the one-key "silent mode", quiet in mastery.
Frequency measurement with 5Hz~5MHz automatic switching range and the maximum input of 380VAC.
10A AC and DC current measurement with protection against voltage error.
Capacitance double gear design 0.1nf-100uf gear position: convenient for small capacitors to measure quickly.
10mf gear position: high capacitance and high accuracy are guaranteed.
Realizing one-button automatic waveform capture, operator-friendly to learn and operate.
Effectively eliminating lead resistance, distributed capacitance or interference signals with relative value measurement (clearing).
Extending battery life with automatic shutdown function.
Specifications:
Material: ABS
Main color: grey
Display: LCD display, 128*64dot-matrix graphics, 4000 counts
LCD size: 60 * 40mm / 2.4 * 1.6in
Backlight: white
Power: 3 * 1.5V AA battery (not included)
Input resistance: 10MΩ
Auto sleep: yes (the meter automatically auto sleep in 15 minutes without any operation of button)
Power consumption: about 40mA
Storage capacity: DMM data: 100 groups, waveform record: 10 groups
Operation environment: 0℃~+40℃; <75%RH
Storage environment: -10℃~+60℃; <90%RH
Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in
Item weight: 190g / 6.7ounce
Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in
Package weight: 360g / 12.7ounce
Analog bandwidth: ACV/DCV/ACA/DCA 20KHz
Maximum real-time sampling rate: 200ksps
Digital multimeter:
DC voltage:
Range: 400mV/4V/40V/400V/1000V
Resolution: 0.1mV/1mV/10mV/100mV/1V
Uncertainty:
400mV: ± (0.75%rdg+10dgt)
4V/40V/400V/1000V: ± (1.5%rdg+10dgt)/1000V
AC voltage:
Range: 400mV/4V/40V/400V/750V
Resolution: 0.1mV/1mV/10mV/100mV/1V
Uncertainty:
400mV: 50Hz~1KHz / ± (2.0%rdg+10dgt) no more than 1KHz
4V/40V/400V: 50Hz~400Hz / ± (1.0%rdg+10dgt) 400Hz~20KHz / ± (5.0%rdg+10dgt)
750V: 50Hz~1KHz / ± (1.5%rdg+10dgt) no more than 1KHz
DC current:
Range: 40mA/400mA, 4A/10A
Resolution:
40mA/400mA: 10μA/100μA
4A/10A: 1mA/10mA
Uncertainty: ± (1.2%rdg+10dgt)
AC current:
Range: 40mA/400mA, 4A/10A
Resolution:
40mA/400mA: 10μA/100μA
4A/10A: 1mA/10mA
Uncertainty: ± (1.5%rdg+10dgt) 50Hz~5KHz no more than 5KHz
Resistance:
Range: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
Resolution: 0.1Ω/1Ω/10Ω/100Ω/1KΩ/10KΩ
Uncertainty: ± (1.0%rdg+5dgt) ± (3.0%rdg+5dgt)/40MΩ
Capacitance:
Range: 51.2nF/512nF/5.12μF/51.2μF/100μF/10mF
Resolution:
51.2nF/512nF/5.12μF/51.2μF/100μF: 10pF/100pF/1nF/10nF/100nF
10mF: 1μF
Uncertainty:
51.2nF/512nF/5.12μF/51.2μF/100μF: ± (3.0%rdg+10dgt)
10mF: ± (5.0%rdg+15dgt)
Frequency:
Range: 5Hz~5MHz
Resolution: 1Hz
Uncertainty: ± (1.0%rdg+5dgt), (signal amplitude not less than 2Vp-p, ACV, MAX 380V)
Diode test: open circuit voltage is about 1.5V, the maximum test current is about 1.5mA
Continuity test: reference resistance is about 50Ω
Fuse specification: 500mA/250V, 10A/250V
Package list:
1 * Multimeter Oscilloscope
1 * Pair of Test Pens
1 * Protective Bag
1 * User Manual
