HS4558 1.3inch TFT Full Color LCD Display Module

HS4558 1.3inch TFT Full Color LCD Display Module

1.Features
SIZE1.3inch
Display ModeNormally black IPS
Display FormatGraphic 240RGB*240 Dot-matrix
Input DataSPI interface
Drive ICST7789VW

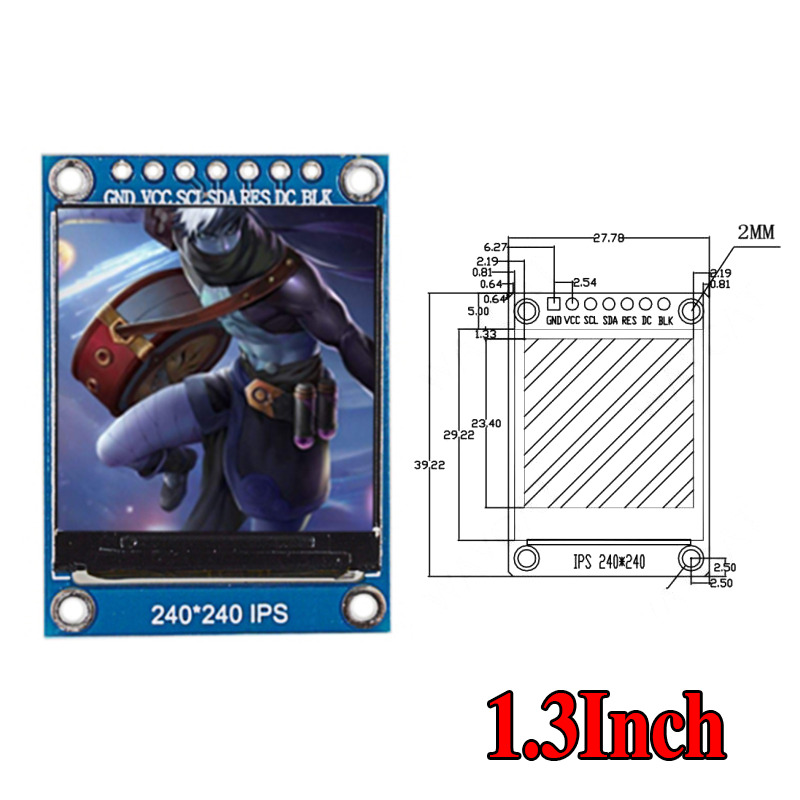

Dimensional outline27.78(W)*39.22 (H)*3.0+/-0.1(T)mm
Resolution240RGB*240 Dots
LCD Active area23.4 (W)*23.4 (H)
Dot pitch0.0975(H) x 0.0975(V) mm
Viewing DirectionAll View
Operating Temperature-20～70°C
2.Pin Descriptions:
PIN NoSymbolDescription
1GNDGround
2VCCPower 3.3V
3SCLSerial clock pin.
4SDASerial data input
5RESLCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6DCData/Command Control
7BLKBacklight control pin
