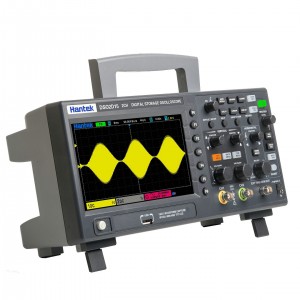

HS4742 Hantek Digital Oscilloscope DSO2C10 / DSO2C15 / DSO2D10 / DSO2D15
1） 2 channels, both are respectively controlled by independent knobes;
2） 100 MHZ, 150MHZanalog channel bandwidth;
3) 1 GSa/s real-time sample rate;
4) 8Mmemory depth;
5) Vertical range2mV/div ~ 10V/div;
6) Built-in 1 CH5MHz waveform generator;
7) Vertical resolution :8bit;
8) Trigger:Edge,Pulse width,Video,Slope,Overtime,Window,Pattern,Interval,Delay,UART,LIN,CAN,SPI,IIC;
9) CAN decode and protocol analysis:RS232/UART、I2C、SPI、CAN、LIN
10) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;
11) 5 bits digital voltage meter and 6 bits hardware frequency indicator function;
12) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;
13) 2 sets of digital voltmeter;
14) Support threshold testing, free measurements within the screen;
15) Abundant SCPIremote command control;
16) Many external interface:USB Host/Device.
