| Brand: | Haitronic |
| Product Code: | HS4743 |
| Availability: | 99999 |

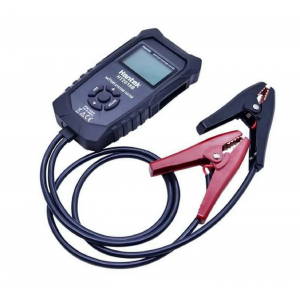

HS4743 Hantek HT2018B Automotive Car Battery System Tester
Features:
Test car load state directly.
Test car starting voltage.
Test car charging voltage normally or not.
Low frequency signal testing without external large load diacharge test.
Easily read out electrical capacity and physical condition to estimate lifecycle.
Directly detect on the car without removing the battery.
Rapidly and accurately display the result of battery test.
Continuous operation,fully protected overvoltage and reverse connection protection.
No electricity,no fever,no spark,no operating danger,mainly all adult can make it.
Battery test:cold starting current,battery internal resistance and voltage,lifecycle analysis.
Starting test:battery changing status during system starting.
System test:output state during charging system working.
Maximum load test:battery maximum load state.
Application field:storage battery manufacturer,automobile production line,Auto 4S limited,storage battery distributor and owner of truck,praivate car.
Specifications:
Type: Battery Tester
Material: Plastic, Metal
Color: Black
Size(L*W*H): About 143x77x28mm
Cable Length: About 600mm
Coolstartcurrent(range):
CCA: 100~1700
IEC: 100~1000
EN: 100~1700
DIN: 100~1000
JIS: 100~1700
Battery Internal Resistance: 0.00mΩ~99.99mΩ
Battery Voltage: 4.5V~30V
Package Included:
1 x Car Battery Tester
1 x Package Box
