| Brand: | Haitronic |
| Product Code: | HS4967 |
| Availability: | 99999 |

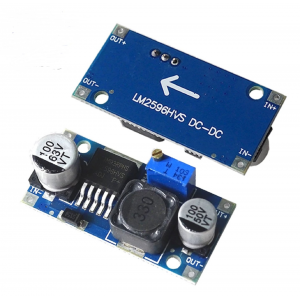

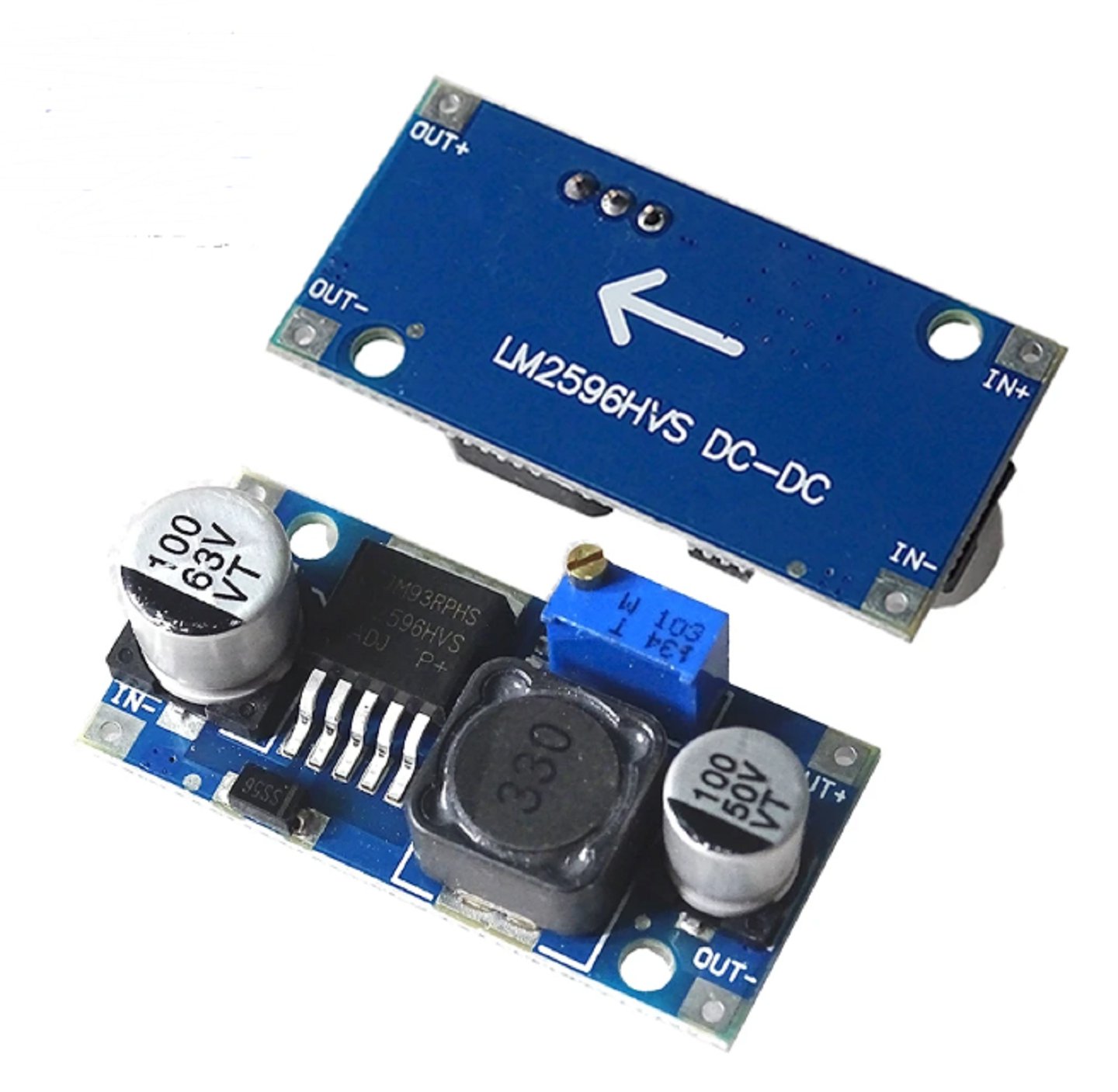

HS4967 48V DC-DC LM2596HV 4.5-60V Adjustable LM2596 Step-Down Module
It's LM2596HVS Not LM2596S Chip,please know it
Type /name:LM2596HVS DC-DC step-down module
Input Voltage:4.5V ~ 53V
Output Voltage:3V ~ 40V
Output Current:3A (max)
Conversion efficiency:92%(the highest)
Output Ripple:<30mV
Switching frequency:150KHz
Operating Temperature:-45 ° ~ +85 °
Size:43mm * 21mm * 14mm (L * W* H)
IN-IN + inputPositiveInput Negative!
Positive outputOUT +OUT-output negative
Input voltage range: DC4.5V to53V (inputvoltagemust be greater thanthe outputvoltageto1.5Vor morehigh.Could notboost)
Output voltage range: DC3Vto 40Vvoltage is continuously adjustable, high efficiency(up to 92%)the maximum outputcurrent of3A.
Measured12V input, 5Voutputcurrent is 1Aload regulationrate of less than1%
Note: This is thestep-down module, the input voltagemust behigher than the outputvoltage.
Outputcurrent is greater than2.5A (or outputpower greater than10W)to work long hours, please addheat sink.
It's LM2596HVS Not LM2596S Chip,please know it
Type /name:LM2596HVS DC-DC step-down module
Input Voltage:4.5V ~ 53V
Output Voltage:3V ~ 40V
Output Current:3A (max)
Conversion efficiency:92%(the highest)
Output Ripple:<30mV
Switching frequency:150KHz
Operating Temperature:-45 ° ~ +85 °
Size:43mm * 21mm * 14mm (L * W* H)
IN-IN + inputPositiveInput Negative!
Positive outputOUT +OUT-output negative
Input voltage range: DC4.5V to53V (inputvoltagemust be greater thanthe outputvoltageto1.5Vor morehigh.Could notboost)
Output voltage range: DC3Vto 40Vvoltage is continuously adjustable, high efficiency(up to 92%)the maximum outputcurrent of3A.
Measured12V input, 5Voutputcurrent is 1Aload regulationrate of less than1%
Note: This is thestep-down module, the input voltagemust behigher than the outputvoltage.
Outputcurrent is greater than2.5A (or outputpower greater than10W)to work long hours, please addheat sink.
