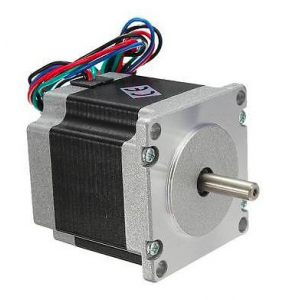

HS0475 Stepper Nema 23HS5628 23 Single Shaft 12.6Kgcm 1.8Degre 4 Leads 56mm SC57STH56-2804A

HS0475 Stepper Nema 23HS5628 23 Single Shaft 12.6Kgcm 1.8Degre 4 Leads 56mm SC57STH56-2804A

Description:

·                Medical industry: Biochemical analyzer, blood cell analyzer

·                Textile industry: Flat knitting machine, circular knitting machine, bobbin winder

·                Advertising industry: Laser machine, engraving machine, marking machine, inkjet printer

·                Industrial automation industry: Semiconductor testing equipment, winding machine, stripping machine

·                Water treatment industry: Screw pump

·                Bank equipment: ATM

·                Others: Metro fare collection system, etc.

General Specification:

·                Step Angle:1.8 degree

·                Temperature: 80℃ max

·                Ambient Temperature: -20℃~+50℃

·                Insulation Resistance: 100MΩ Min. 500.VDC

·                Dielectric Strength: 500VDC for 1 minute

·                Shaft Radial Play: 0.02Max.(450g-load)

·                Shaft Axial Play: 0.08Max.(450g-load)

·                Max.radial force: 75N(20mm from th flange)

·                Max. axial force: 15N

Electrical Specification:

·                Motor Length: 56mm

·                Rate Current: 2.8A

·                Voltage: 2.5V

·                Phase resistance: 0.9Ω

·                Phase inductance: 2.5mH

·                Holding Torque: 12.6kg.cm

·                Lead Wire NO. : 4

·                Detent Torque: 0.4kg.cm

·                Rotor Inertia: 300g.cm

·                Motor Weight: about 0.7kg
