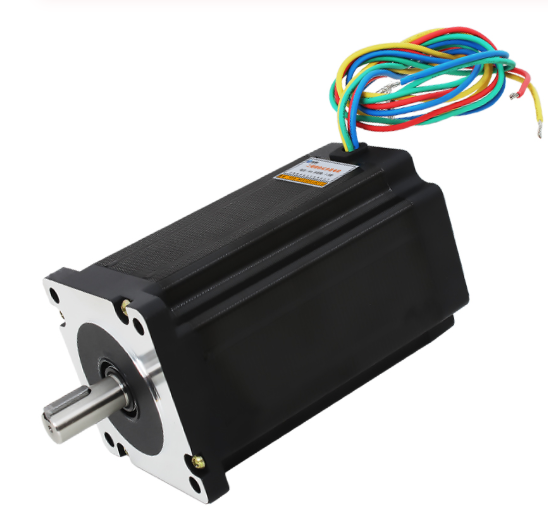

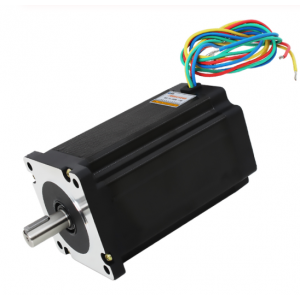

HS2379 Nema34 86BYGH450C-06 stepper motor Length151mm torque 12Nm 2phase step motor for cnc router

HS2379 Nema34 86BYGH450C-06 stepper motor Length151mm torque 12Nm 2phase step motor for cnc router

Description
(General Specifications) hybrid stepper motor

Step Angle ----------------------------- 1.8 degree ± 5%

Insulation resistance -------- 500V DC 100M Min

Dielectric Strength -------- 50Hz 1Minute 500V Min

Ambient temperature ----------- 20  ~ +50 degreed

Temperature rise -------------------------- 80 degree Max.

Runout ------------------------------- 0.02mm Max.

Axial runout --------------------------------------- 0.08mm



86BYGH450C-06



Phase: Phase 2

Current: 5A

Resistance: 0.62 Ohms

Inductance: 3.5mH

Torque: 12Nm

Moment of inertia: 2700 (g.cm2)

Weight: 5.5KG

Body length: 151mm

Shaft: 35mm

Wiring: Red A+   Yellow  B+  Green A-  Blue B-

Shaft: Keyed 12.7mm or keyed 14mm
