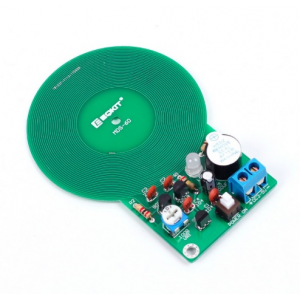

HS0806 DIY Metal Detector Kit
1. Introduction
Metal Detector is a high performance metal detector designed for security.
2.Parameter
|
NO. |
Parameter |
Value |
|
1 |
Name |
Metal Detector |
|
2 |
Operating Voltage |
DC 3-5V |
|
3 |
Operating Current |
40mA |
|
4 |
Standby Current |
5mA |
|
5 |
Detection Distance |
60mm |
|
6 |
Alarm mode |
Sound/Light |
|
7 |
Difficulty |
Easy |
|
8 |
PCB Size |
86*61mm |
3.Application
1>. Game entertainment
2>. Security check
3>. Search for metal products
5>. Car detection
5>. Traffic Statistics
6>. Elevator floor control
7>. Production equipment position detection
8>. Production equipment development and design
9>. Electronic Product Design
10>. Play equipment development
11>. Metal proximity switch
12>. Metal detection in human body
4.Schematic
5.Component listing
|
NO. |
Component Name |
PCB Marker |
Parameter |
QTY |
|
1 |
Metal Film Resistor |
R3 |
470ohm |
1 |
|
2 |
Metal Film Resistor |
R2 |
2K |
1 |
|
3 |
Metal Film Resistor |
R1 |
200K |
1 |
|
4 |
Potentiometer |
VR1 |
100R |
1 |
|
5 |
Ceramic Capacitor |
C2,C3 |
0.022uf |
2 |
|
6 |
Ceramic Capacitor |
C1,C4 |
0.1uf |
2 |
|
7 |
Electrolytic Capacitor |
C5 |
100uf |
1 |
|
8 |
Red LED |
LED1 |
5mm |
1 |
|
9 |
S9012 |
Q2.Q3 |
TO-92 |
2 |
|
10 |
S9018 |
Q1 |
TO-92 |
1 |
|
11 |
Power Switch |
SW1 |
6*5mm |
1 |
|
12 |
Buzzer |
SP1 |
9*12mm |
1 |
|
13 |
Power Socket |
J1 |
KF301-2P |
1 |
|
14 |
PCB |
|
MDS-60 |
1 |
