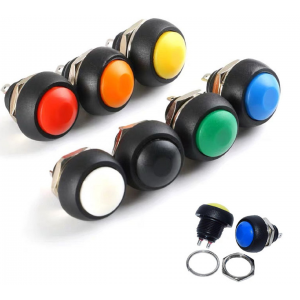

HR0589 10pc PBS-33B 12mm  Momentary Push Button

HR0589 10pc PBS-33B 12mm Momentary Push Button

Brand:Haitronic
Product Code:HR0589
Availability:999999

Available Options

* Color:

Qty:     - OR -   Add to Wish List Add to Compare



If you want with soldered wire , you can refer to this link

HS3381 10pcs PBS-33B 12mm Momentary Push Button with 20cm wire

https://www.haitronic.cn/index.php?route=product/product&product_id=5017&search=PBS-33B





HR0589 10pc PBS-33B 12mm  Momentary Push Button

Distinctive Features:

The Anti vandal switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Variety of Material

1,000,000 cycles momentary

Anti-Vandal IK09/ Sealed IP65

Square and round versions available

Functions:

NO Function

Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.

Model

V12-B-A



Terminal Type

Screw Terminals



Switching

No.1



Max. Switch Rating

2A/48VDC



Contact Resistance

≤50mΩ



Insulation Resistance

≥1000mΩ



Dielectric Strengh

2000VAC



Operation TEMP.

-20°c ~ +55°c



Mechanical Life

1, 000, 000 cycles



Electrical Life

200, 000 cycles



Contact Material

Silver Alloy



Panel Thickness

1~6mm



Torque

5~14Nm



Operation Pressure

5N



IP Degree

IP65



Material

Button

PBT



Body

Zn-Al alloy



Base

PBT



Head Color
