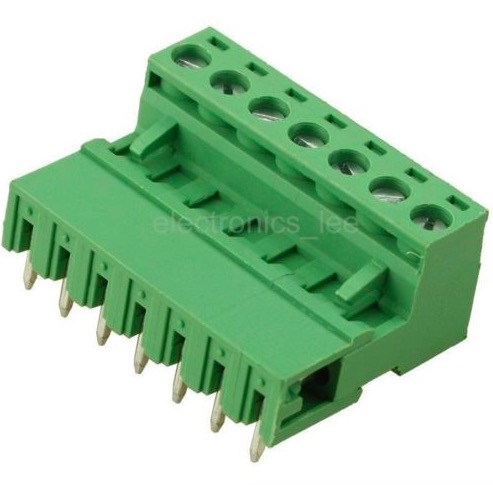

HR0627 5.08mm Right Angle Screw Terminal block - 7 pin

Specification :



Voltage rating: 300V

Current rating: 15A

Pitch: 5.08mm

Wire range: Solid wire(AWG): 18-30

Torque: 1.8 Lb-In

Screw: M4

Wire strip length: 4.5~5mm

Withstanding Voltage: 1.5KV

Operating temperature: -40℃ to +105℃

Soldering temperature: 250℃ ±10℃ /5Sec

  Pin Number: 7
