| Brand: | Haitronic |
| Product Code: | HS0038 |
| Availability: | 9999999 |

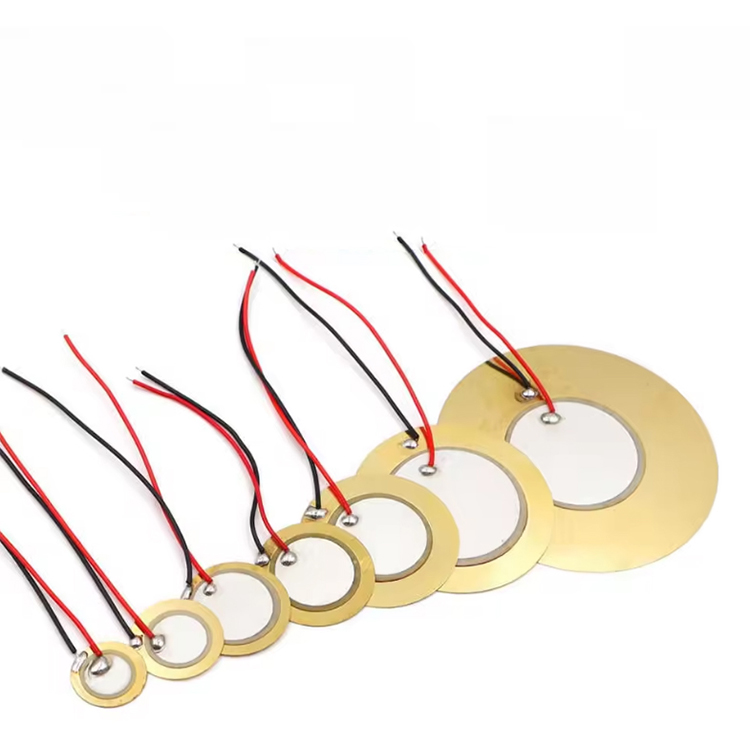

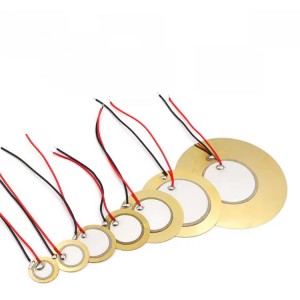

HS0038 Buzzer Piezo 12mm 20pcs
* Voltage range: DC 1V-22V
|
The Specification Book of the goods |
Date |
|||||
|
The Customer |
Type Specification YZ-12T-10.0A2 |
|||||
|
Serial Number |
Items |
The Parameter |
||||
|
1 |
谐振频率 Resonant Frequency |
10.0±0.5KHz |
||||
|
2 |
谐振阻抗 Resonant Impedance |
≤600(Ω)max |
||||
|
3 |
静态电容 Static Capacitance |
80000 (PF)±30% |
||||
|
4 |
储存温度 Storage Temop |
-30℃-----+70℃ |
||||
|
5 |
基片材料 Plate Material |
黄铜Copper |
||||
|
|
尺寸 Dimensions |
图例 Example Picture |
||||
|
1 |
外径 D External Diameter |
12mm±0.1mm |
|
|||
|
2 |
内径 d Inside Diameter |
9mm±0.2mm |
||||
|
3 |
厚度 t Thickness |
0.15mm±0.05mm |
||||
|
4 |
厚度 T Thickness |
0.35mm±0.05mm |
||||
|
|
|
|||||
