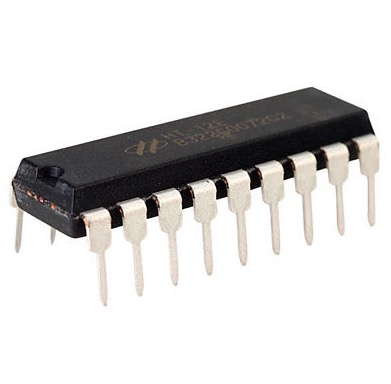

HS1021 HT12E 18DIP Remote Control Encoder

HS1021 HT12E 18DIP Remote Control Encoder

Remote control encoder, 2.4V to 12V supply voltage, 2uA standby current, 3kHz system frequency, 150uA operating current, 1.6mA output drive current, 1.5M pull high resistance, -20 to +75°C, 18-DIP case, they are capable of encoding information which consists of 8-address bits and 4-data bits (HT12A), or 8-address bits and either 4 further address/data bits (HT12E), each address/data input can be set to one of the two logic states, the programmed addresses/data are transmitted together with the header bits via an RF or an infrared transmission medium upon receipt of a trigger signal, designed for remote control system applications.
