HS1186 ER11 Chuck CNC 500W Spindle Motor with 52mm Clamps and Power Supply Speed Controller

HS1186 ER11 Chuck CNC 500W Spindle Motor with 52mm Clamps and Power Supply Speed Controller

Product Code:HS1186
Availability:999999
Qty:     - OR -   Add to Wish List Add to Compare
Specification:

Dimension 130mm×100mm×50mm (L*W*H)
Input AC110-220V±10% 50/60Hz
Spindle Motor 500w
Spindle Speed 3000-12000r/min
Motor Diameter 52mm
Motor Length 208mm
Operating Voltage (Output Voltage) 100V DC
Current 6A
Speed Up to idle up to 15,000 rev / min
Torque 5000G/CM
Insulation Resistance > 2 megohms
Dielectric Strength 400V
High precision spindle runout 0.01-0.03

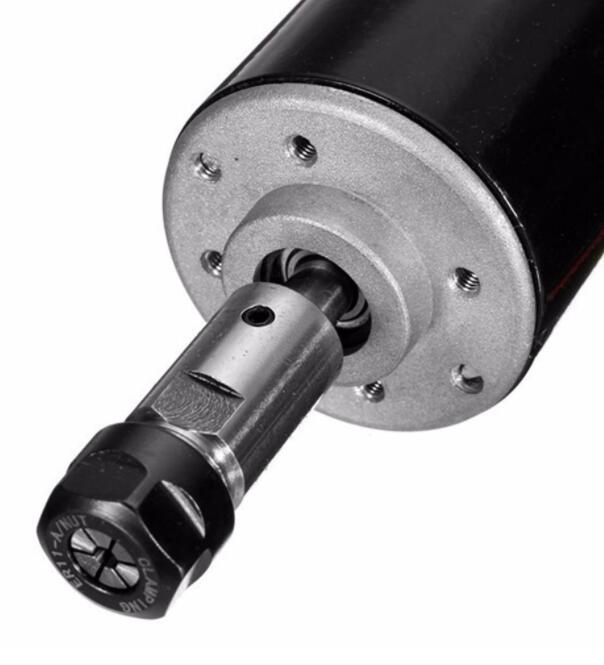

Chuck size:
Style: ER11
Chuck Size: 1/8"
Material: High Grade 45 Carbon Steel
Total height: 18mm
Outer diameter(Max.): 11.5mm
Gripping Range: 3mm
Small diameter: 7.8mm
Fits metric shank size(s): 3mm metric shank

Nut Size:
Inner Diameter: 8.7mm
Height: 13mm
Hex Diameter: 17mm
Outer Diameter:19mm

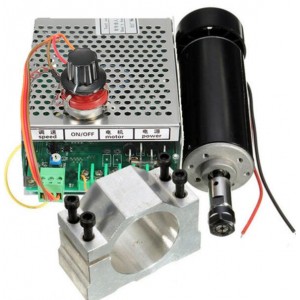

Package Included:
1 x 500W Spindle Motor
1 x Power Supply

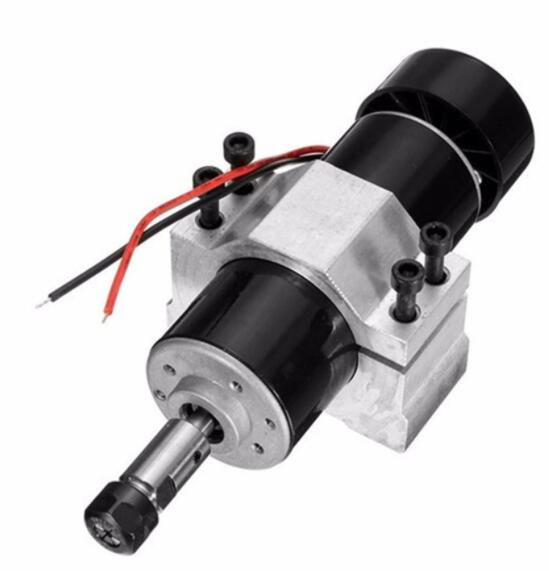

1 x 52MM Mount Bracket
1 X ER11 Collect
4 x Screws

Note:
the wire + and - could be connected in both position as you want but make sure the output and input voltage position to be correct.
