| Brand: | Haitronic |
| Product Code: | HS1575 |
| Availability: | 99999 |

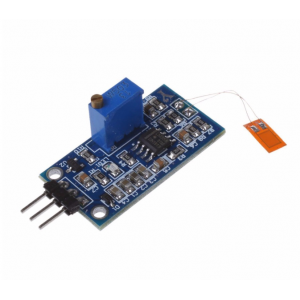

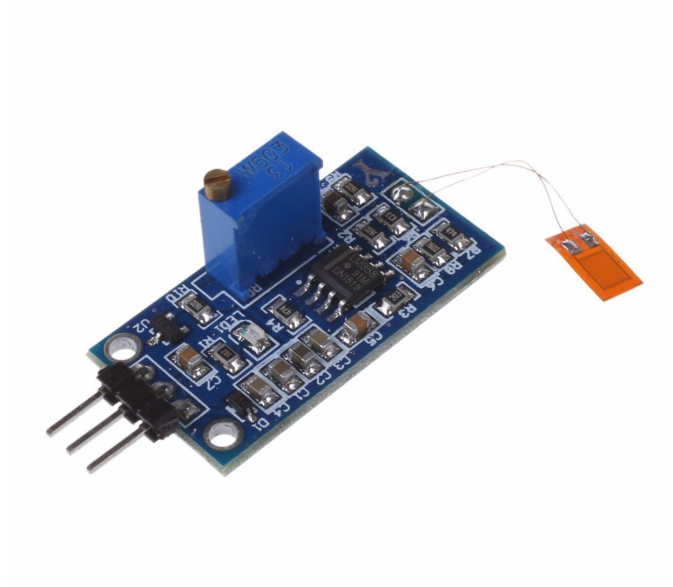

HS1575 BF350-3AA/1.5AA Strain gauge bending sensor module
Model:BF350-3AA/1.5AA
Sensitivity factor: 2
Strain limit: 2%
Grid wire: longx wide2 x3.5mm
Base size: longxwidth 5X4.5mm
Base material: modified phenolic substrate.
Grid wire material
Resistance: 350 ohms
Fatigue life: >10000000 times
Flux: ordinary rosin solder
The working principle of resistance strain gauge is based on the strain effect produced by mechanical deformation, namely the role of conductor or semiconductor materials in the external force when the resistance value changes, this phenomenon is called "strain effect".
The strain gauge is attached to the object to be measured, so that it is bent along with the strain of the measured object. A lot of metal in the mechanical bending of its resistance will change.
Product profiles
Voltage: 5V
Two tube reverse protection ~ (to prevent the power supply connected to the back)
On board with a blue LED power indicator
Analog output
The higher the bending degree, the higher the output voltage
Zero potentiometer
Can be used to adjust the output voltage of the starting voltage
Output analog voltage 0-3.5V
Board size: 32 X 17 mm
The board is printed with pin output definition
(bending strain gauge can change the output voltage)
