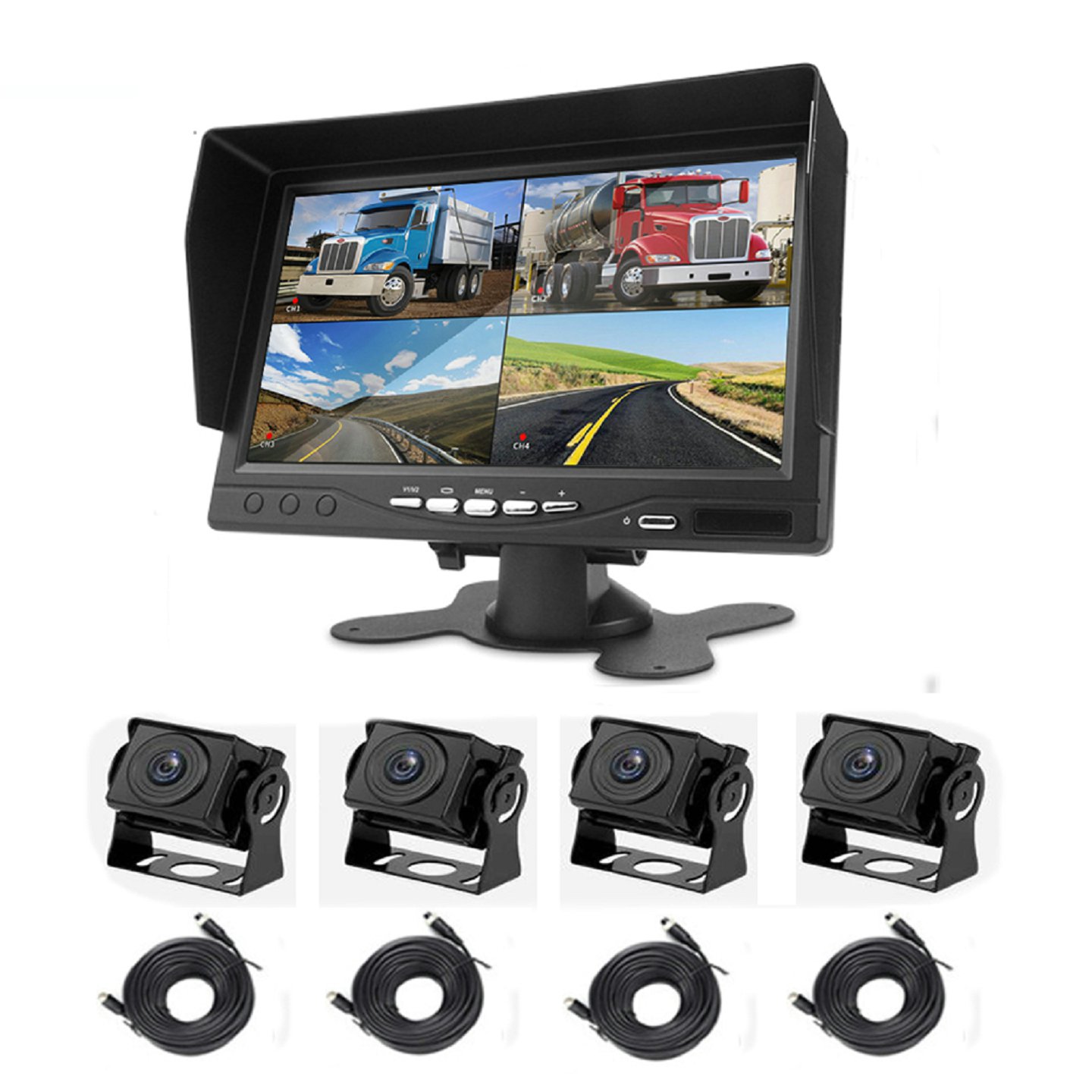

HS3199 7 Inch / 10 Inch Truck DVR Monitor with 4 Dash Camera
Feature:
360° Surveillance & Recording: Come with 4 channel waterproof sync recording cameras (Front/Left/Right/Rear) DVR system. You can easily switch display mode (quad-image/independent image) on 7 inch widescreen monitor by wireless IR remote. Design for Truck Van Caravan Trailers Camper Bus RV Harvester etc.
4CH Infrared camera design with Star Light+IR CUT night vision: Capture the clear image quality at any condition. Long wired connection with camera (15 meters & 5 meters) provide stable and high quality video transmission.
Auto Turning & Reversing Detection: Connect with trigger wire, the split image will automatically switch over to corresponding camera as independent image when detecting the signal of turning left/right, or reversing.
24 Hours monitor connect with vehicle battery, protect your vehicle all day and night long!
Support up to 256GB Micro SD card (not include): it can hold roughly 10 hours of all 4CH camera videos without overwriting. And it will keep continuously recording of 1/3/5 minutes clips by overwriting the oldest files once the card is full.
Loop Recording: The DVR will keep continuously recording as 1/3/5 minutes clips by overwriting the oldest files when the memory card is full.
Specification:
Screen: 7.0'', TFT Screen, 1024*600
Emergency recording: 3-axis G-sensor, Emergency file will be saved automatically while detecting shock
Front Camera: VGA resolution, waterproof, 120° wide angle, Extension cable 5 meters
Rear Camera: VGA resolution, waterproof, Star light+IR CUT, 6-layer all-glass (6G), 120° wide angle Extension cable 15 meters
L / R camera: VGA resolution, waterproof, Star light+IR CUT, 6-layer all-glass (6G), 120° wide angle Extension cable: 5 meters
Video Format: AVI / H.264
Loop Recording, Support seamless recording
Languages: Chinese, English.
Support maximum 256G TF card (Class 10 or above)
9-28V input ; 5V2A output dedicated step-down converter, which built in super capacitor will save the last file safely
Range temperature Use -10~+65°C
Humidity Use 4%~90%RH
Size: 180.0mm(L) *115.0mm(W) X 20.0mm(T)
